Figure 4
Download original image

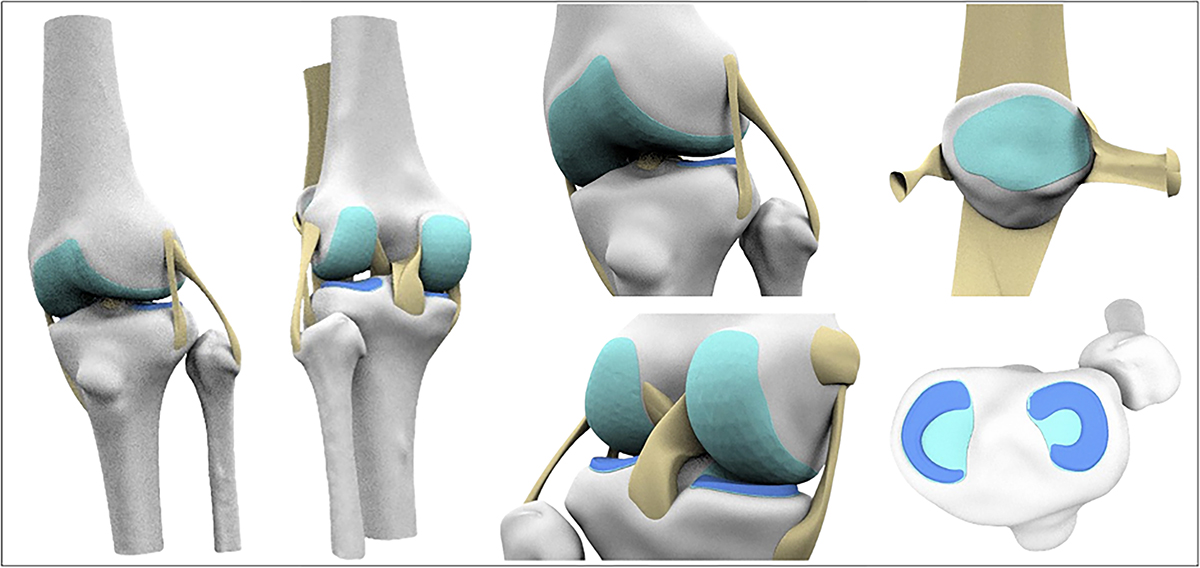

Reconstruction of articular cartilage and menisci geometries. Cartilage was modeled by projecting anatomical footprints onto bone surfaces, with the femoral cartilage requiring a multi-planar approach; menisci were generated from C-shaped footprints and height-varying contour lines to capture their wedge-shaped, crescent-like anatomy.
